One MicroLumen Way Oldsmar, FL 34677 USA Polyimide is a polymer thermoset plastic that has exceptional thermal stability, chemical resistance, and tensile strength. These characteristics make polyimide an ideal material for high-performance medical applications. The tubing is lightweight, flexible, and resistant to heat and chemical interaction.

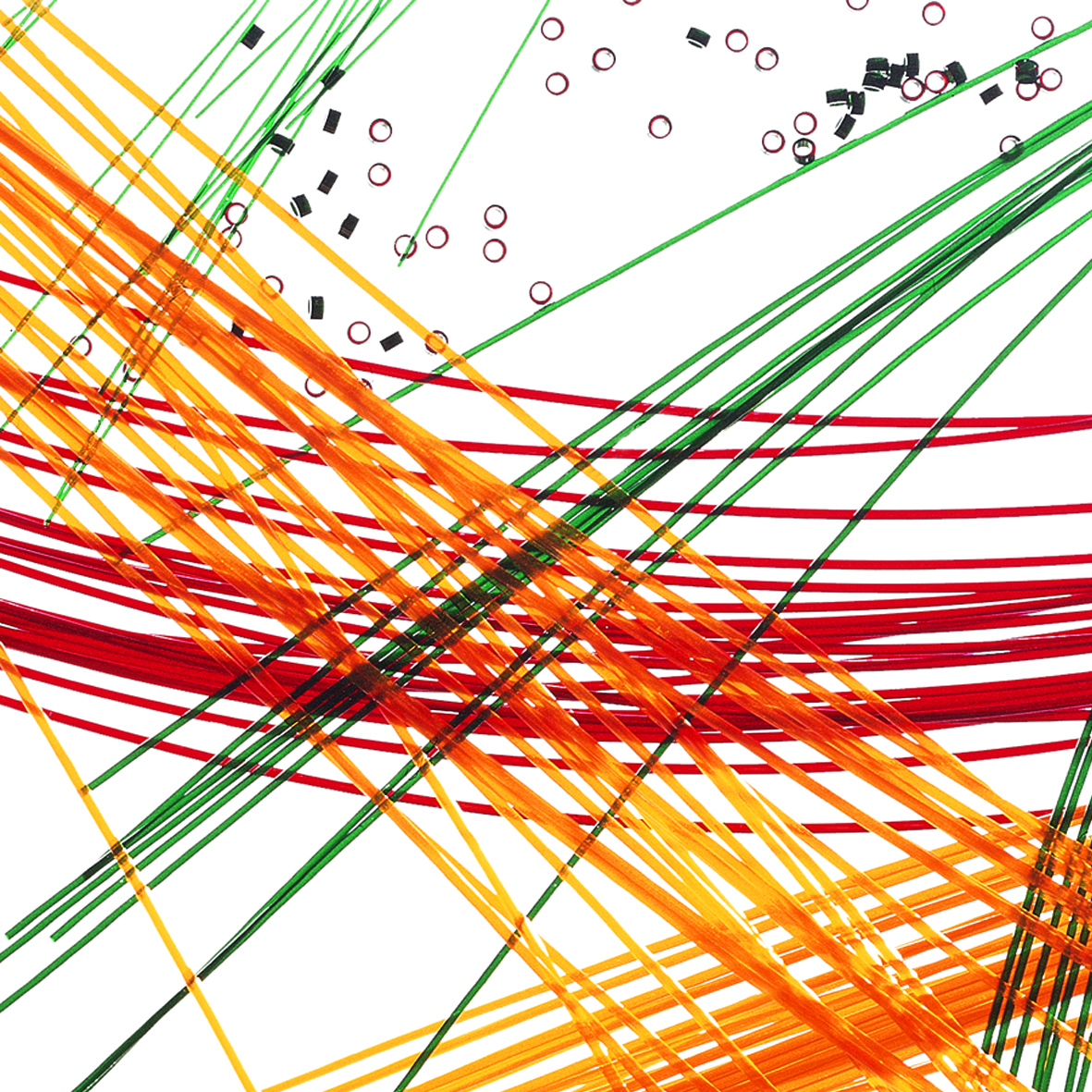

Polyimide Tubing

Specifications

Standard Size/Tolerances

• Standard ID sizes from 0.004" to 0.086" (0.10mm to 2.18mm)
• Wall thickness from 0.0005" to 0.008" (0.0127mm to 0.2032mm)

ID Size/Tolerances

• ID > 0.0200" (0.51 mm) Tolerance: ± 1% of Nominal
• ID < 0.0200" Tolerance: ± 0.0002" (0.005 mm) of Nominal

Wall Thickness/Tolerances

• Wall > 0.0010" (0.025 mm)
• Tolerance: ±0.00025" (0.006 mm)
• Wall < 0.0010"
• Tolerance: +0.00025", - 0"
