Electrically Conductive Adhesives

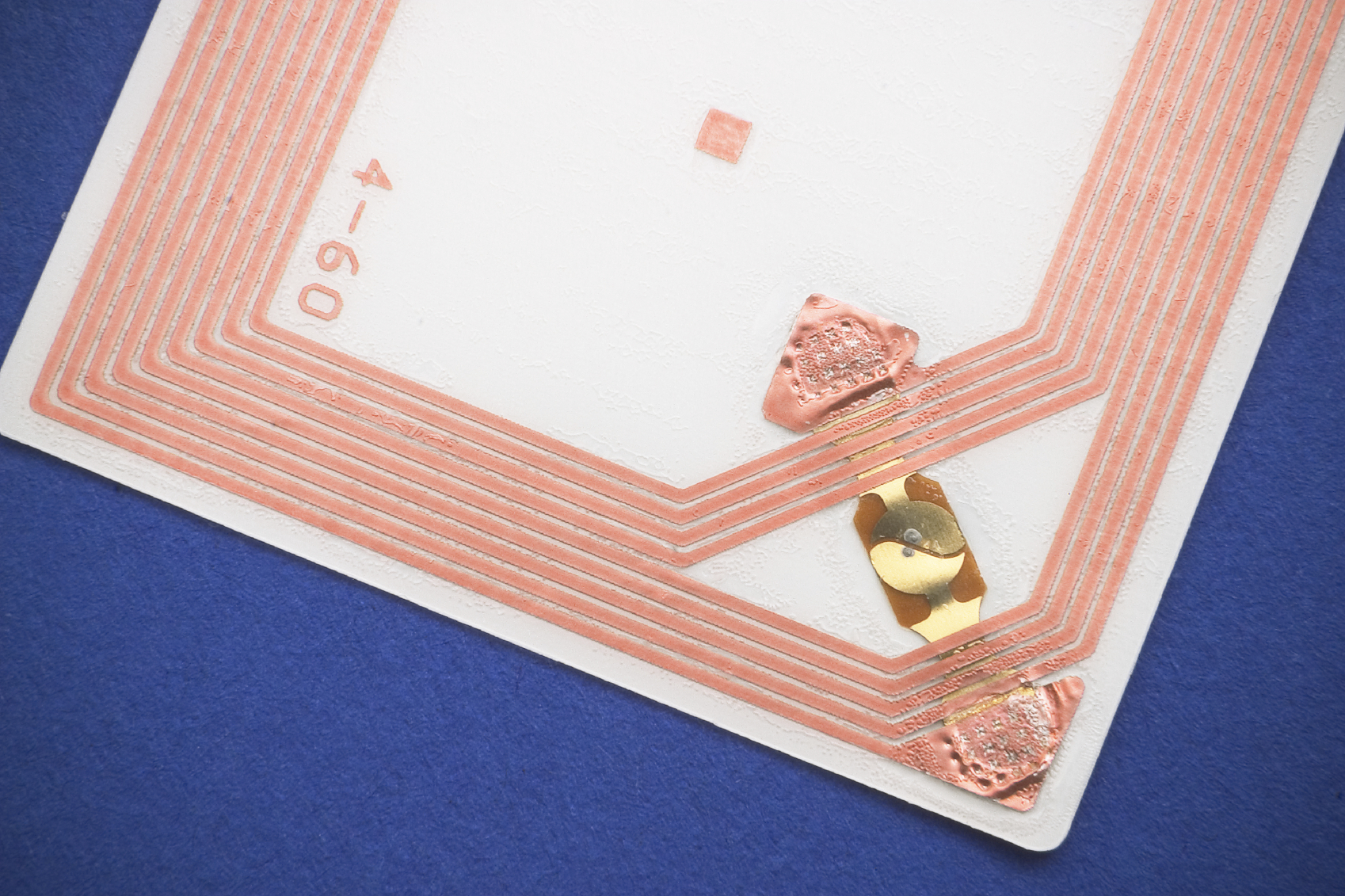

Panacol-USA offers electrically conductive adhesives for applications involving die bonding, underfilling, antennae printing, flip-chips, LCD, and flex circuit assembly.
As their exclusive distributor for the Americas, Panacol-USA provides Elecolit® brand epoxies from Panacol-Elosol. Panacol-ElosolGmbH is a member of the Honle Group headquartered in Germany, and has been formulating and manufacturing adhesives for over 30 years.
In select applications, Elecolit® electrically conductive adhesives from Panacol-USA can have significant advantages over traditional soldering methods. Some of their benefits include:
- Connecting thermally sensitive components –curing occurs at low temperatures (<200°C)
- Strain relief for electrical connections that experience significant stress during operation
- Attaching components where connections are not accessible for soldering
- Electrically conductive adhesives are solvent and lead-free
- No cleaning or flux is required
- Easily incorporated into existing assembly processes
Elecolit® electrically conductive adhesives include thermally curable one and two-component products as well as a UV light curable, anisotropic adhesive series. While single component adhesives simplify dispensing and processing, two-component adhesives provide longer shelf life and can be cured at room temperature. The range of adhesive compositions includes epoxies, acrylates, and polyamides. To facilitate practical conductivity, fillers such as palladium, gold, silver, copper, nickel, and graphite are used.
View the electrically conductive adhesive products listed below for a possible candidate for your application. Please contact Panacol-USA to confirm your product selection and to secure additional application assistance, including samples and process recommendations. In the event that these standard products do not satisfactorily address your performance requirements, Panacol-USA will investigate other solutions that include development of adhesive specifically tailored to the complexity of your application.
Browse Panacol-USA Technical Documents for Product Details and Specifications
